Edge AI

Edge AI ModulesWhere to Buy / Distributor Inventory

Product/development board purchases

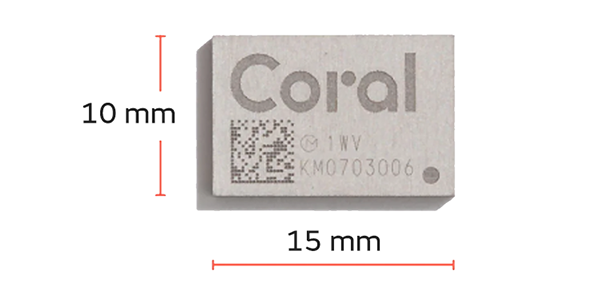

Type1WV module unit

Type1WV is sold by Google.

Learn more, at coral.ai

Dimensions	15.0 × 10.0 × 1.5 mm
Chipset	Google Edge TPU and PMIC
Mounting type	SMT, 120-pin LGA
Serial interface	PCIe Gen 2 or USB 2.0 Note USB 3.0 is also available but requires special design considerations and support

Type1WV development board

Other products and form factors that enable the use of the Coral Edge TPU can be found at coral.ai.

Learn more, at coral.ai

CPU	NXP i.MX 8M SoC (quad Cortex-A53, Cortex-M4F)
GPU	Integrated GC7000 Lite Graphics
ML accelerator	Google Edge TPU coprocessor: 4 TOPS (int8); 2 TOPS per watt
RAM	1 GB LPDDR4 (option for 2 GB or 4 GB coming soon)
Flash memory	8 GB eMMC, MicroSD slot
Wireless	Wi-Fi 2×2 MIMO (802.11b/g/n/ac 2.4/5GHz) and Bluetooth 4.2
USB	Type-C OTG; Type-C power; Type-A 3.0 host; Micro-B serial console
LAN	Gigabit Ethernet port
Audio	3.5mm audio jack (CTIA compliant); Digital PDM microphone (×2); 2.54mm 4-pin terminal for stereo speakers
Video	HDMI 2.0a (full size); 39-pin FFC connector for MIPI-DSI display (4-lane); 24-pin FFC connector for MIPI-CSI2 camera (4-lane)
GPIO	3.3V power rail; 40 - 255 ohms programmable impedance; ~82 mA max current
Power	5V DC (USB Type-C)
Dimensions	88 mm × 60 mm × 24mm

Type2DA module unit

Dimensions	6.1 × 5.8 × 1.45 mm
Chipset	Syntiant NDP102
MCU	Atmel SAMD21G18
Serial Flash	1MB
Crystal	32kHz
Mounting type	SMT, 49-pin LGA
Serial interface	PDM, I²S, SPI, UART

See here to make a purchase or send an inquiry

Type2DA development board/debug board

Development board

Debug board

ML accelerator	NDP102 Tye2DA modules 0.05TOPS per watt
Wireless	Wi-Fi 2×2 MIMO (802.11b/g 2.4G) and Bluetooth 4.2
Audio	Dynamic range of 105dB MEMS microphone
Accelerate sensor	6- axis
LED	1 piece (R,G,B)
Power	5V DC (Micro-USB Type-B)
Dimensions	49 mm × 20 mm × 15mm

See here to make a purchase or send an inquiry
