mmWave Radar Sensor ModulesAutomotive modules

[Concept product] *Specifications are subject to change without notice.

mmWave Radar sensor modules are ideal for precisely detecting distance, angle of arrival and velocity between target objects in harsh environments.

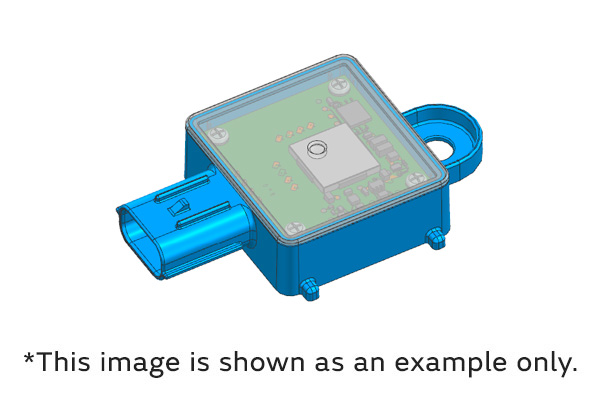

Image of mmWave Radar Sensor Modules. The antenna design can be customized, so this image is shown as an example only.

Type 1VM
Applications
Features of Type 1VM
Product Information
Evaluation Kit
Inquiries
Supplier

Type 1VM

Murata Type1VM module is Ultra-small,high quality module which includes TI AWR6843 chipset and Optimized antenna.
This module is suitable for in-cabin sensing like a CPD^*1, OMS^*2.

*1CPD: Child Presence Detection
*2OMS: Occupancy Monitoring System

Applications

Child Presence Detection
Seat Belt Reminder
Airbag Control

eBook download: In-Cabin Radar for Child Protection

Features of Type 1VM

Chipset: Texas Instruments AWR6843 (including C674x DSP for advanced signal processing)
Frequency: 60 to 64GHz Coverage (4GHz Bandwidth)
Built in Patch Antennas
Interface: UART / CAN^*3
Size^*4: 27.0 × 25.0 × 3.1 mm

*3CAN transceiver is not included in module.
*4This may be changed by the optimized antenna design.

Product Information

Item	Explanation
Product Type	Module
Product Status	Under Development
Grade	Automotive
Chipset	Texas Instruments AWR6843 (including C674x DSP for advanced signal processing)
Frequency	60 to 64GHz Coverage (4GHz Bandwidth)
CPU Core	ARM Cortex-R4F
Flash / RAM	16M-bit Serial Flash Memory
Antenna	Built in Patch Antennas
Operating Temperature Range	−40 to 85 deg.C
Connector to Host	BtoB Connector
Package	Metal Shield
Dimension (It depends on the antenna design.)	27.0 × 25.0 × 3.1 mm
Supply Voltage (VBAT) ±0.5	5.0V
Supply Voltage min	4.5V
Supply Voltage max	5.5V
Technology	mmWave Radar
Host Interface	UART / CAN^* * CAN transceiver is not included in module
IATF16949	Yes

Evaluation Kit

Item	Explanation
Product P/N	LBVA0ZZ1VM-EVK
Content	Evaluation kit for Murata Radar module Type1VM. Interface board includes MCU, switch, BtoB connector, USB connector and so on. Using the interface board enable to evaluate Murata radar module easily with PC.

If you would like to evaluate this solution, please contact us at Inquiries.
