ESD Protection Devices (anti-static components)Using a TVS diode (ESD protection device) with an external I/O interface

What is an external I/O (input/output) interface?

An external I/O interface refers to a connector (USB, HDMI, Thunderbolt, etc.) used to connect to an external device.
External I/O interfaces are used in a wide variety of devices.
Examples: PCs, smartphones, TVs, tablets, printers, POS systems, speakers

TVS diodes and the issue of ESD with external I/O (input/output) interfaces

If an external I/O interface makes contact with a person or object, this will generate static electricity.
There are many cases where this static electricity travels to an IC and causes a malfunction.
A TVS diode can be used in such cases to prevent this issue from occurring.

Usage Example

An example is provided below.

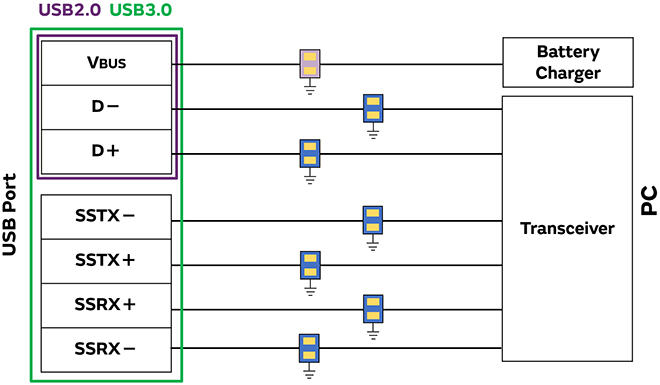

USB
HDMI

USB

The recommended capacitance for USB and Thunderbolt is provided below.

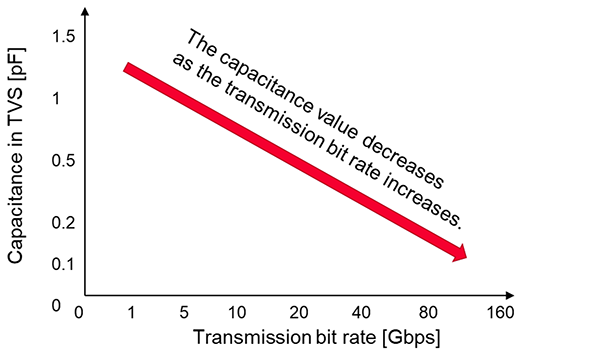

Higher transmission speeds require parts with lower capacitance.

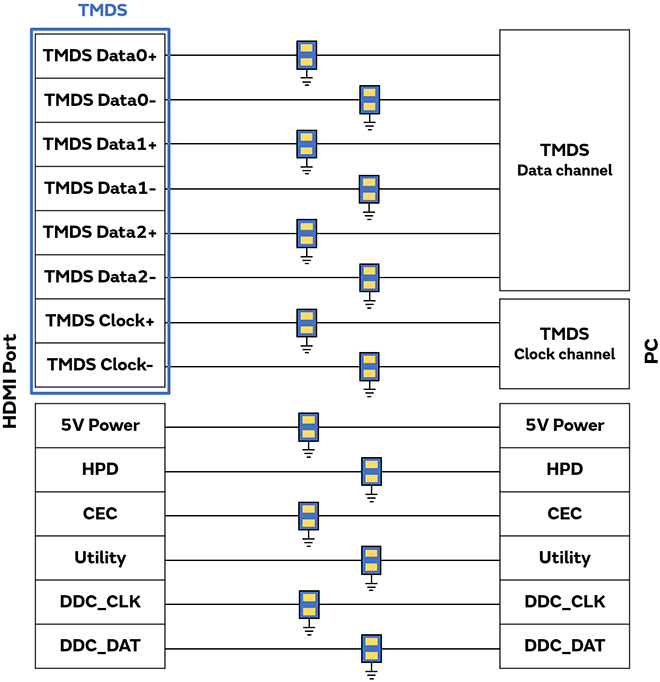

HDMI

Murata's recommended product for HDMI is shown below.

Click here to request a sample

P/N	HDMI1.0/1.1/I1.2/1.2a/1.3/1.4		HDMI2.0/2.1
P/N	Data line	Control line	Data line	Control line
LXES03TBB1-141	✔	✔	✔	✔
LXES02TAA1-145	✔	✔	✔	✔
LXES1UTAA1-157	✔	✔		✔
LXES1UTBB1-157	✔	✔		✔
LXES03TAA1-199	✔	✔		✔
LXES03TAA1-142		✔		✔
LXES02TAA1-144		✔		✔

HDMI 1.0/1.1/1.2/1.2a/1.3/1.4

HDMI 2.0/2.1

HDMI 1.0/1.1/1.2/1.2a/1.3/1.4/2.0/2.1
