Product Features and Specifications

Murata's PLT10H

  • Data Sheet

Features

  • The PLT10H can handle up to 18A maximum, and can also be used for power supply lines.
  • This is a surface mounting type product.
  • Generates a common impedance of 1000 Ωmaximum (at 10 MHz), and great effectiveness in noise suppression can be expected.
  • This product can be used in operating environments from -55°C to 125°C.
    (PLT10HH9016R0/PLT10HH401100/PLT10HH101150/PLT10HH450180)
  • It is also effective at suppressing differential mode noise.

PLT10H

Application Examples

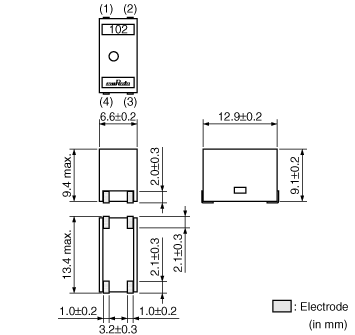

Outer Dimensions Drawing

Outer Dimensions Drawing

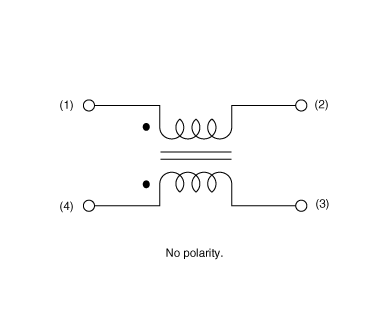

Equivalent Circuit

Equivalent Circuit

Ratings Table

Part Number Dimensions (mm) Common Mode Impedance Zc
(at 10MHz) Typ.
Rated Voltage Withstand Voltage Rated Current DC Resistance Insulation Resistance (min.) Inductance (L) Operating Temperature Range Storage Temperature Range
PLT10HH401100PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
400Ω (Typ.) 100Vdc 250Vdc 10A 3.6mΩ
±0.5mΩ
10MΩ 6µH -55°C〜
+125°C
-55°C〜
+125°C
PLT10HH501100PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
500Ω (Typ.) 100Vdc 250Vdc 10A 3.6mΩ
±0.5mΩ
10MΩ 9µH -55°C〜
+105°C
-55°C〜
+125°C
PLT10HH9016R0PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
900Ω (Typ.) 100Vdc 250Vdc 6A 3.6mΩ
±0.5mΩ
10MΩ 14µH -55°C〜
+125°C
-55°C〜
+125°C
PLT10HH1026R0PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
1,000Ω (Typ.) 100Vdc 250Vdc 6A 3.6mΩ
±0.5mΩ
10MΩ 20µH -55°C〜
+105°C
-55°C〜
+125°C
PLT10HH101150PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
100Ω (Typ.) 300Vdc 750Vdc 15A 1.8mΩ
±0.5mΩ
10MΩ 2.0µH -55°C〜
+125°C
-55°C〜
+125°C
PLT10HH450180PN L: 12.9±0.2
W: 6.6±0.2
T: 9.1±0.2
45Ω (Typ.) 300Vdc 750Vdc 18A 1.3Ω
±0.5mΩ
10MΩ 0.8µH -55°C〜
+125°C
-55°C〜
+125°C

*Notes on ratings
Do not use this product beyond the rated current and rated voltage. If this product is used beyond these ranges, the insulation resistance of the component may deteriorate, resulting in excessive generation of heat.

*Products with higher rated currents are under development.

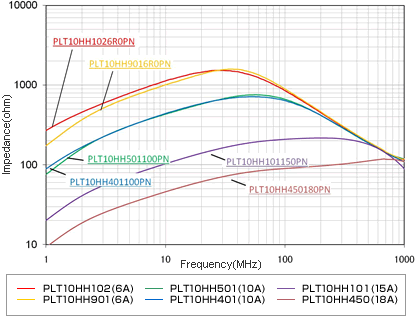

Common Mode Impedance Frequency Characteristics

Common Mode Impedance Frequency Characteristics

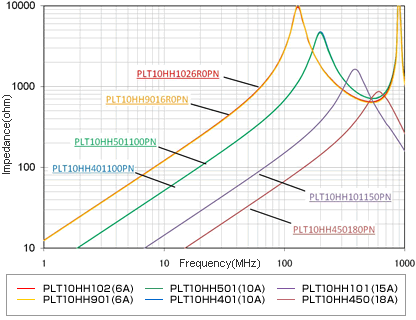

Differential Mode Impedance Frequency Characteristics

Differential Mode Impedance Frequency Characteristics

Derating of Rated Current

Derating of Rated Current

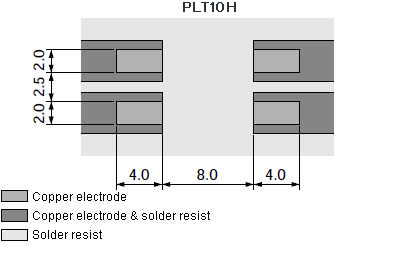

Land Dimensions (Reflow Soldering)

Land Dimensions (Reflow Soldering)

Inquiries regarding products

Inquiries by e-mail

Click here for consultation and inquiries before purchase

Detailed Data

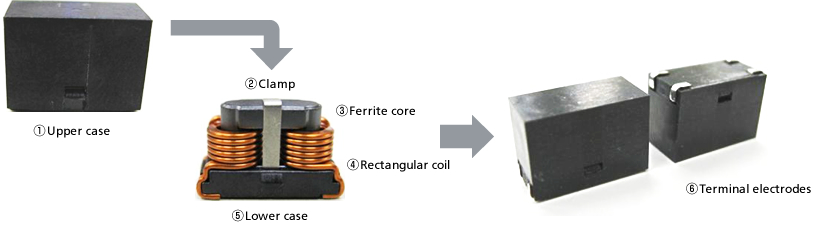

Structure

Structure

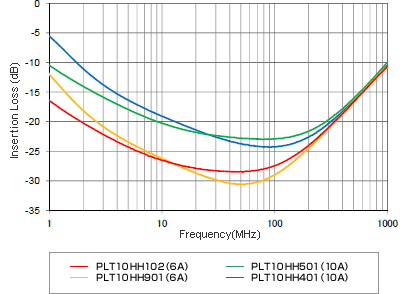

Insertion Loss Characteristics

Insertion Loss Characteristics

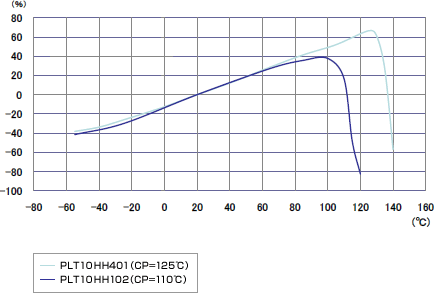

Temperature Characteristic of Impedance (at 10 MHz)

Temperature Characteristic of Impedance (at 10 MHz)
