    Wi-Fi® ModulesType 1LD-Ayla

    Order Number LBEE5PA1LD-222

    • inproduction
    • recommended
    Read more

    Contents

    Overview

    Shielded Ultra Small Wi-Fi® 11b/g/n Module with Cloud Agent
    • 2.4GHz Wi-Fi® MCU Module
    • Chipset: Infineon (CYW43438) + STM32 (ARM Cortex-M4F)
    • Processor: ARM Cortex-M4F
    • FCC/IC "Reference" Certified
    Supporting Ayla Networks software platform
    • For Industrial IoT, Smart Home, Sensor Network
    • Pre-loaded Ayla Cloud Agent
    • Ayla IoT Platform on Murata Solutions.

    Data Sheet & Contact menu

    Data Sheet PDF
    Contact Us
    Back to the contents

    Description

    Type 1LD-Ayla is a small module with Ayla cloud agent pre-loaded. Murata is partnering with Ayla Networks to offer edge connectivity, device management, data analysis and security.

    Type 1LD-Ayla enables Ayla Cloud service connectivity via UART or SPI interface. Ayla cloud agent is ready-made solution for time-to-market. Your UART or SPI interface becomes cloud connectivity with Type 1LD-Ayla. Wi-fi® connection, TCP/IP, security supplicant, wi-fi® onboarding are already taken care of. No complicated hardware design required.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Document Statement Please engage with Murata Sales Team and Wireless Team to determine if this module is suitable for your applications.

    Products Data Sheet

    Last Update: Oct 28, 2019

    Data Sheet PDF

    Products Related Files

    If you would like a product catalog or technical data, please check the check box and download it from the download button below.

    Swipe left or right to change screens. View in landscape mode.
    Type File Name File size Last Update
    Additional Docs murata_wifi_bt_fcc_guide.pdf PDF: 1.09MB -
    Download
    Back to the contents

    Software

    Software
    Driver Firmware Ayla Networks software
    Back to the contents

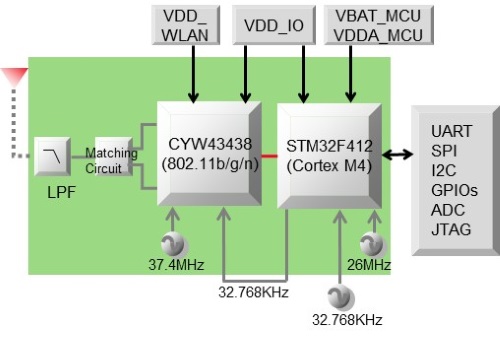

    Block Diagram

    Block Diagram : Type 1LD-Ayla
    Back to the contents

    Purchase

    Sample Part Number LBEE5PA1LD-ATEMP-AYLA
    Production Part Number LBEE5PA1LD-222
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
