    Wi-Fi® + Bluetooth® ModulesType 1CQ

    Order Number LBEE5U91CQ

    • To be discontinued
    Read more

    Contents

    Overview

    Shielded Ultra Small Dual Band Wi-Fi® 11a/b/g/n/ac + Bluetooth® 5.0 Module
    • 2.4GHz & 5 GHz Wi-Fi® + Bluetooth® Module
    • Chipset: Qualcomm (QCA6174A)
    • Processor: No
    High Performance Capabilities for Internet of Things
    • For Industrial IoT, Smart Home, Sensor Network, Gateway
    • 802.11 a/b/g/n/ac 2×2 MIMO 866Mbps
    • NXP i.MX Linux

    Data Sheet & Contact menu

    Data Sheet PDF
    Contact Us
    Back to the contents

    Description

    Type 1CQ module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth® functionality for consumer grade applications. Based on Qualcomm QCA6174, the module provides IEEE 802.11a/b/g/n/ac (2×2) and Bluetooth® 5.0 + EDR.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Products Data Sheet

    Last Update: May 14, 2018

    Data Sheet PDF
    Back to the contents

    Software

    Software Please submit the information through the Contact Us button to initiate a contact into Murata sales or wireless team for more information about software availability.
    Driver Firmware Linux driver/firmware for NXP i.MX platform
    Back to the contents

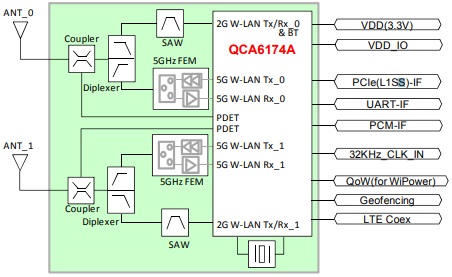

    Block Diagram

    Block Diagram : Type 1CQ
    Back to the contents

    Purchase

    Production Part Number LBEE5U91CQ-281
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2000
