    Wi-Fi® ModulesType 1JP

    Order Number LBWA1ZZ1JP

    • To be discontinued
    Read more
    Replacement Part: Type 1KP

    Contents

    Overview

    Shielded Small Wi-Fi® 11b/g/n + MCU Module
    • 2.4GHz Wi-Fi® Module
    • Chipset: TI (CC3100)
    • Processor: No
    • FCC/IC "Reference" Certified
    Supporting TI SimpleLink Wi-Fi® SDK
    • For Industrial IoT, Smart Home, Sensor Network
    • 802.11 b/g/n 65Mbps, Wi-fi® Stack runs inside

    Contact menu

    Contact Us
    Back to the contents

    Description

    Type 1JP Wi-Fi® module is a small, low power, self contained, certified embedded Wi-Fi® network controller solution for cunsumer grade applications. It is enabled with TI SimpleLink architecture. They host the Wi-Fi®, TCP/IP network stack, security supplicant, and other network application features.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Document Statement For latest version of datasheet and other related documents, please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.
    Back to the contents

    Software

    Software

    To develop software by TI SimpleLink Wi-Fi® SDK, please go to TI CC3100SDK web site

    The CC3100 SDK contains drivers, many sample applications for Wi-Fi® features and internet, and documentation needed to use the CC3100 Internet-on-a-chip™ solution. This SDK can be used with TI’s MSP-EXP430F5529LP LaunchPad, MSP-EXP430FR5969 Wolverine LaunchPad, or SimpleLink Studio, a PC tool that allows MCU development with CC3100. You can also use the SDK as example code for any platform. All sample applications in the SDK are supported on TI’s MSP430F5529 and MSP430FR5969 ultra-low-power MCUs with Code Composer Studio IDE and TI RTOS. In addition, many of the applications support IAR & GCC.
    Driver Firmware TI SimpleLink Wi-Fi® SDK
    Back to the contents

    Block Diagram

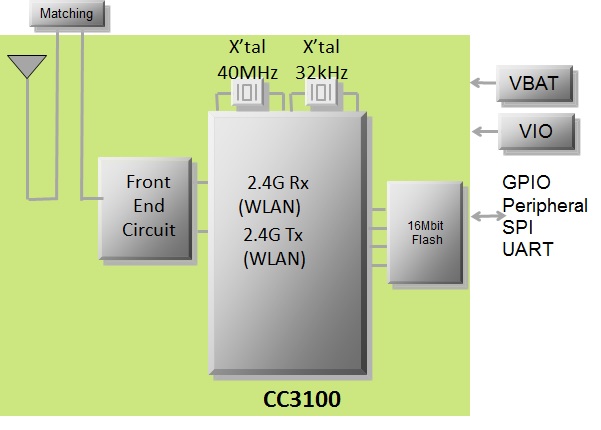

    Block Diagram : Type 1JP
    Back to the contents

    Eval Tool

    Evaluation Tool For evaluation - order LBWA1ZZ1JP-TEMP-A
    Back to the contents

    Purchase

    Sample Part Number LBWA1ZZ1JP-TEMP
    Production Part Number LBWA1ZZ1JP-928
    Development Kit Part Number LBEWA1ZZ1JP-TEMP-D
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
