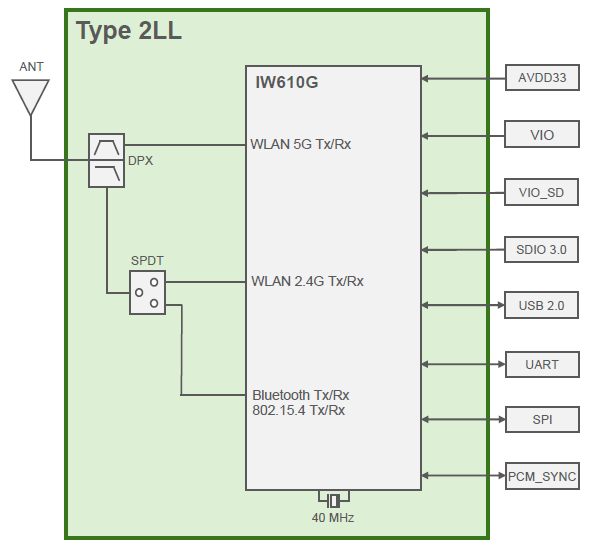

Type 2LL is a small and very high performance module based on NXP IW610G combo chipset which supports Wi-Fi™ 802.11a/b/g/n/ac/ax HE20 + Bluetooth®. 5.4 Low Energy + 802.15.4 up to 114.7Mbps PHY data rate on Wi-Fi™ and 2Mbps PHY data rate on Bluetooth® Low Energy. The Wi-Fi™ section supports SDIO v3.0 DDR50 interface, the Bluetooth® section supports high-speed 4-wire UART interface. The 802.15.4 section supports SPI interface.
The Type 2LL implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that Wi-Fi™, Bluetooth®, and 802.15.4 collaboration is optimized for maximum performance.
In IEEE 802.11ax mode, the Wi-Fi™ operation supports rates of MCS0-MCS9 (up to 256QAM) in 20MHz channels for data rate.

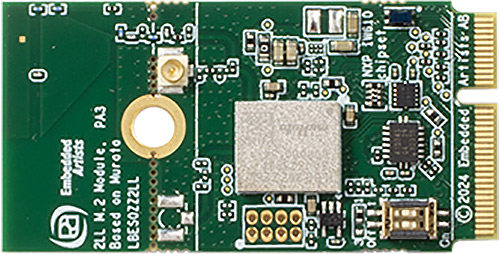

Type 2LL module is packaged in an impressively small shielded form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more.
