    Wi-Fi® ModulesType 1ADD-Ayla

    Order Number LBWB1ZZ1AD

    • Discontinued
    Read more
    Replacement Part: Type 1LD-Ayla

    Contents

    Overview

    Shielded Small Wi-Fi® 11b/g/n + MCU Module with Cloud Agent
    • 2.4GHz Wi-Fi® MCU Module
    • Chipset: Infineon (CYW4390)
    • Processor: ARM Cortex-M3
    • FCC/IC Certified
    Supporting Ayla Networks software platform
    • For Industrial IoT, Smart Home, Sensor Network
    • Pre-loaded Ayla Cloud Agent
    • Learn more about Ayla IoT Platform on Murata Plus

    Data Sheet & Contact menu

    Data Sheet PDF
    Contact Us
    Back to the contents

    Description

    Murata is partnering with Ayla Networks to offer a complete end-to-end platform for building world class Internet-connected products. The Murata Type 1AD Certified Wi-Fi® Connectivity Module comes pre-loaded with the Ayla Embedded Agent, enabling developers to connect to the Ayla Cloud Services and smartphone/tablet applications based on the Ayla Application Libraries. The Ayla IoT Cloud solution provides developers a fast path to add smart phone and tablet-based control and monitoring to existing products. Leveraging ubiquitous Wi-Fi® and the power of the cloud, users can securely connect to their devices from anywhere with an Internet connection.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Products Data Sheet

    Last Update: Jan 11, 2016

    Data Sheet PDF
    Back to the contents

    Software

    Software

    see Ayla's Website for Ayla IoT Cloud Software and more information.
    Learn more about Ayla IoT Platform on Murata Plus
    Driver Firmware

    Ayla Networks software
    Back to the contents

    Block Diagram

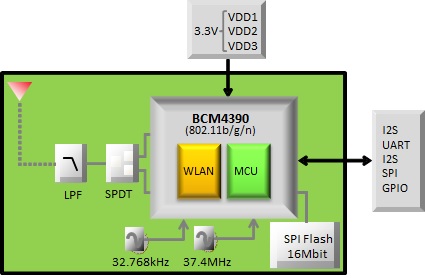

    Block Diagram : Type 1AD Certified for Ayla IoT Cloud software
    Back to the contents

    Purchase

    Sample Part Number LBWB1ZZ1AD-ATEMP-AYLA
    Production Part Number LBWB1ZZ1AD-812
    Development Kit Part Number LBWA1CS1AD-ATEMP-AYLA
    Purchase

    Please check "Where to Buy | Distributor Inventory".

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 1,680
    Shipping Size 1,680
    Back to the contents
