    Wi-Fi® ModulesType XR

    Order Number LBEP5CLXRC

    • NRND
    Read more

    Contents

    Overview

    Ultra Small Wi-Fi® 11b/g/n Module
    • 2.4GHz Wi-Fi® Module
    • Chipset: TI (WL1801)
    • Processor: No
    High Performance Capabilities for Internet of Things
    • For Industrial IoT, Smart Home, Sensor Network
    • 802.11 b/g/n 65Mbps

    Contact menu

    Contact Us
    Back to the contents

    Description

    Type XR module is an ultra-small module that includes 2.4GHz WLAN functionality. Based on TI WL1801, the module provide high-efficiency RF front end circuits. The module is designed to fit into small spaces and is smaller than a dime. Minimal external circuitry is required to complete a radio design; add an antenna, power source, clocks, processor, and associated interface hardware and the radio hardware design is complete. To ease Wi-Fi® certification, the Type XR module complies with IEEE 802.11b/g/n. Software is available for Linux and Android through TI support channel.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Document Statement For latest version of datasheet and other related documents, please access through Contact Us button.
    Back to the contents

    Software

    Software Please get TI Wi-Fi® driver software through TI support channel. For deeper software technical support, driver porting support or advanced features support, Intelligraphics can provide you the best support. Please refer to the Software Guide and contact to Intelligraphics for the detail.
    Software Guide
    Driver Firmware Linux/ Android driver through TI support channel. Intelligrahics can provide advanced software.
    Back to the contents

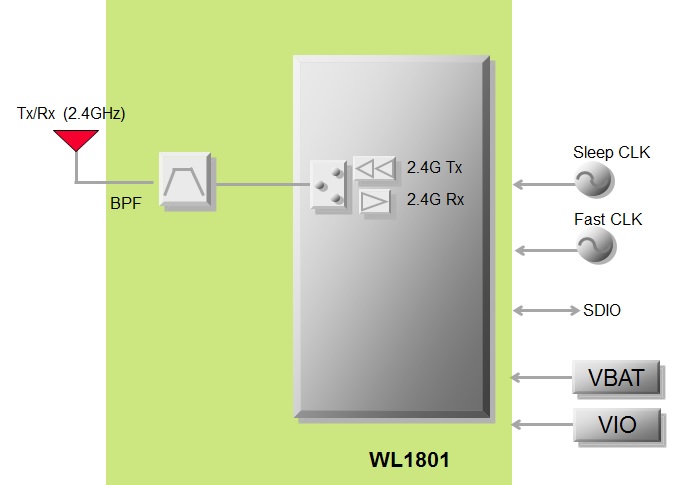

    Block Diagram

    Back to the contents

    Purchase

    Sample Part Number LBEP5CLXRC-TEMP
    Production Part Number LBEP5CLXRC-701
    Development Kit Part Number LBEP5CLXRC-TEMP-D (Daughter Card)
    LBEP5CLXRC-TEMP-AA (Mother Board)
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
