    Wi-Fi® ModulesType ABH

    Order Number CMEN1ZZABH

    • To be discontinued
    Read more

    Contents

    Overview

    Shielded Small Wi-Fi® 11a/b/g/n/ac 2×2 MIMO Module
    • 2.4GHz & 5 GHz Wi-Fi® + NFC Module
    • Chipset: NXP (88W8897)
    • Processor: No
    High Performance Capabilities for Internet of Things
    • For Industrial IoT, Smart Home, Sensor Network, Gateway
    • 802.11 a/b/g/n/ac 2×2 MIMO 866Mbps

    Contact menu

    Contact Us
    Back to the contents

    Description

    The Type ABH module is an ultra-small module that includes 2.4GHz + 5GHz WLAN and NFC functionality. Based on NXP 88W8897, the module provide high-efficiency RF front end circuits. The module is designed to fit into small spaces. Minimal external circuitry is required to complete a radio design; add an antenna, power source, clocks, processor, and associated interface hardware and the radio hardware design is complete. To ease Wi-Fi® certification, the Type ABH module complies with IEEE 802.11a/b/g/n/ac and NFC. Software is available for Linux from NXP.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Document Statement For latest version of datasheet and other related documents, please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.
    Back to the contents

    Applications

    Applications Characteristics Key high-throughput mobility interfaces, including SDIO 3.0, USB, PCIe, make the Type ABH module suitable for: Smartphones Tablets Computing platforms
    Back to the contents

    Software

    Software Please submit the information through the Contact Us button to initiate a contact into Murata sales or wireless team for more information about software availability.
    Back to the contents

    Block Diagram

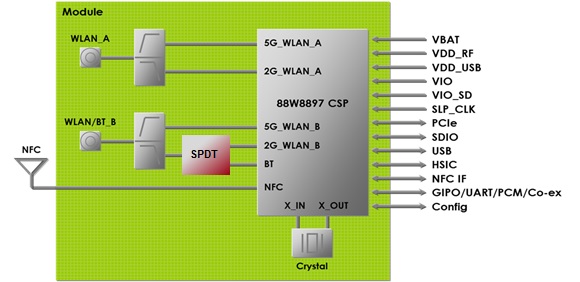

    Block Diagram : Type ABH
    Back to the contents

    Eval Tool

    Evaluation Tool For evaluation - order CMEN1ZZABH-EVK
    Back to the contents

    Purchase

    Sample Part Number CMEN1ZZABH-TEMP
    Production Part Number CMEN1ZZABH-036
    Development Kit Part Number CMEN1ZZABH-EVK
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
