    Microblower (Air Pump)

    The greatest feature of Murata microblower technology is the use of ceramics as the drive source. The structure is elaborately designed to function as an air pump using the ultrasonic vibrations of ceramics. The result is an extremely compact, thin, and silent air device. In general, microblowers fall into the piezoelectric pump category.

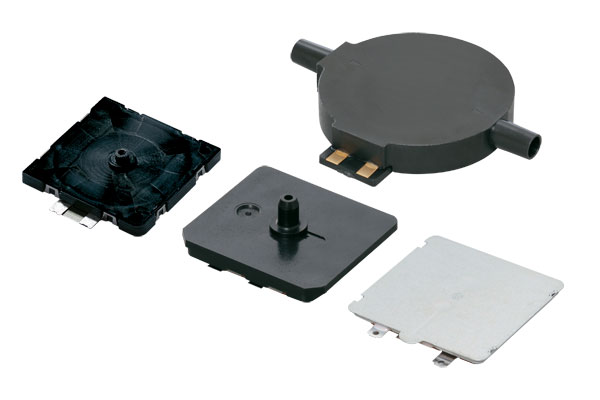

    Microblower
    Microblower (Air Pump)

    Product Lineup

    It has a structure designed to function as an air pump (piezoelectric pump) using the ultrasonic vibrations of ceramics as the drive source.

    • *Pressure type: MZB3004T04 micro blower

    Selection Guides

    Microblowers are small and lightweight air pumps (piezoelectric pumps) that achieve a high pressure and high flow rate. They can be used in various applications.

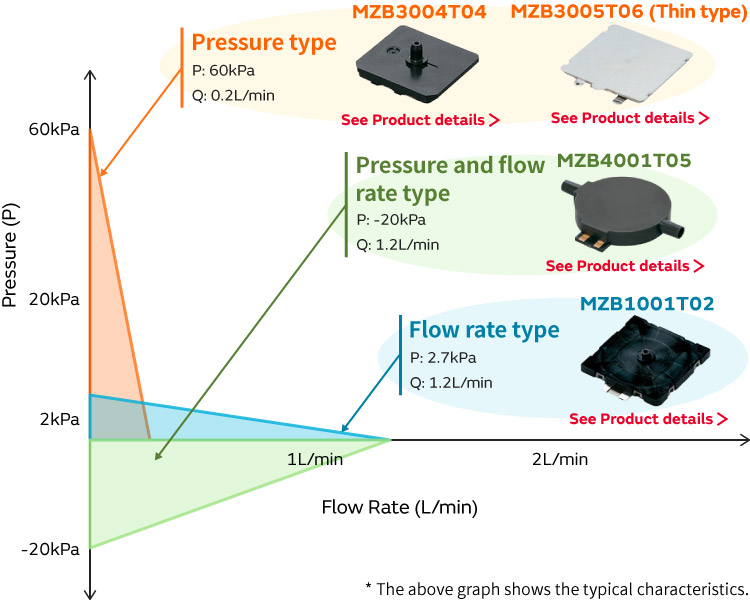

    The maximum pressure and maximum flow that can be acquired differs by the part number. Please select the part number suitable for your purpose.

    Swipe left or right to change screens View in landscape mode.


    Swipe left or right to change screens View in landscape mode.

    Microblower MZB1001T02
    (Flow rate type)

    Microblower MZB3004T04
    (Pressure type)

    Microblower MZB3005T06
    (Thin, pressure type)

    Microblower MZB4001T05
    (Pressure and flow rate type)
    Input voltage*1
    [Vdc]    		 11.5 to 21 8 to 21*2 8 to 21*2 20 to 28*3
    Operating environment
    temperature range [°C]    		 0 to 70 0 to 45 0 to 45 5 to 50
    Drive resonance frequency [kHz] 24 to 27 21.5 to 24.5 21.5 to 24.5 20 to 22
    Flow Rate*4 [L/min] ≥0.7
    @15Vpp    		 ≥0.155
    @18Vdc    		 ≥0.155
    @18Vdc    		 ≥0.5
    @24Vdc
    Static Pressure*4 [kPa] ≥1.42
    @15Vpp    		 ≥50
    @21Vdc    		 ≥50
    @21Vdc    		 ≤-10.5
    @24Vdc
    Outside dimension/tolerance
    (except the nozzle and terminal)    		 20±0.15mm 21±0.2mm
    19±0.2mm    		 19±0.15mm φ28±0.2mm
    Features Achieves a high flow rate in a compact and thin design. Achieves high pressure in a compact and silent design. Achieves an even thinner design without a nozzle maintaining a performance equivalent to a pressure type*5. Achieves balanced pressure and flow rate characteristics while having a thin and quiet design.
    • *1This is the input voltage for our performance-guaranteed drive circuit.
    • *2The input voltage differs in the case of the circuit we provide for the sample trial. Please contact us for details.
    • *3If a voltage exceeding 24 Vdc is applied, the reliability of the components may decline.
    • *4The measurement conditions are as follows.
       ・MZB1001T02: An environmental temperature of 15°C to 35°C and an atmospheric pressure of 960 hPa to 1,060 hPa
       ・MZB3004T04 and MZB3005T06: An environmental temperature of 18°C to 28°C and an atmospheric pressure of 950 hPa to 1,020 hPa
       ・MZB4001T05: An environmental temperature of 18°C to 28°C and an atmospheric pressure of 950 hPa to 1,020 hPa
      (The flow rate and pressure characteristics change depending on the temperature conditions, atmospheric pressure conditions, and input voltage.)
    • *5Pressure type: MZB3004T04 micro blower
    • We give details about the specs, features, and precautions of each part number on the introduction page for each part number.
      Please click on the part number you want to view to check those details.

    Features of microblowers

    Allow pumps to be used in quiet environments

    As the piezoelectric element vibrates in the ultrasonic band (20 kHz or more), it is inaudible to humans and thus extremely quiet
    For wearable device applications that do not restrict the daily lives of their users

    Small, thin, and lightweight, and thus suitable for carrying around
    Comfortable blowers (pumps) even when worn

    The pump drive unit has an extremely small amplitude (dozens of µm), so people do not feel vibrations even when the devices are worn and thus they are very comfortable
    Can also be used for sucking applications

    The device moves air in one direction, so it can also be used for sucking if used on the suction side
    Smooth supply with discharge without pulsation

    High-speed piezoelectric vibrations are used in the pump drive unit, so there is almost no pulsation in the discharged air and thus stable air discharge is possible
    Send air in the desired instant

    High-speed piezoelectric vibrations are used, so the response from switch-on to discharge is quick
    Easily control the air characteristics by adjusting the input voltage

    The piezoelectric amplitude changes instantly according to the voltage, so it is also possible to control the pump characteristics by changing the input voltage
    The flow rate and pressure can be increased with one touch

    The pressure / flow rate can be increased easily by connecting the microblowers in series / parallel

    Technical Refference

    Application examples

    Notes

    • A microblower is a device to suck / discharge air, and liquids cannot flushed directly. The body cannot be washed because it does not have a sealed structure, and has no waterproof function. Also, avoid using this product in environments with condensation.
    • Since the microblower sucks and discharges air, contaminants and dust in the air tend to accumulate inside the pump, and the contaminants and dust will influence the operation time. Use the microblower in a clean environment, or use a filter to remove at least submicron level of contaminants to prevent particles and dust from entering. (* The use of a filter does not guarantee suppression of the characteristics deterioration of the microblower.)
    • Particularly, the smoke from tobacco and mosquito-repellant incense, etc. have an influence on the life span of the product. Do not use the product in any smoky environment.
    • The microblower cannot be used for automobile applications (including accessories). Do not use this product for automobiles.
    • If the microblower is used for medical applications, murata requires a special contract to cover the use in the medical application to be agreed before start of mass production. Please contact us for details.
    • Do not handle the body of the microblower (including the nozzle, wiring, etc.) with bare hands.
    • Do not bend the terminals of the microblower.
