Type 2JM is an ultra-small and cost-effective module based on Qualcomm QCC730 chipset which supports Wi-Fi 802.11a/b/g/n SISO up to MCS3.

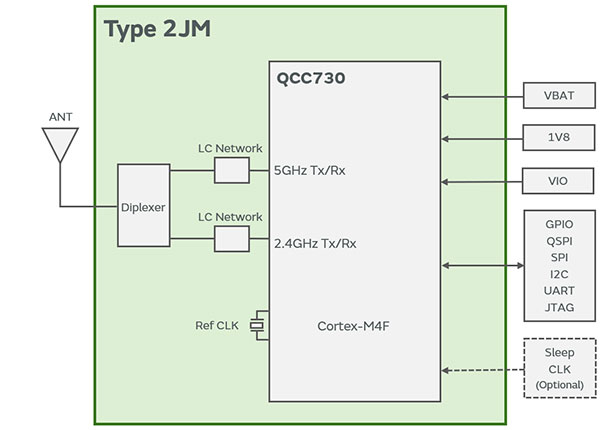

Type 2JM supports flexible MUX interfaces; 1x SPI (Peripheral), 1x QSPI (Controller), 1x UART, 1x I2C (Controller).
Extremely low power operation is accomplished by dynamically disabling elements of the SoC which are not in use, thus allowing a near zero level of power consumption when not actively transmitting or receiving data. Such low power operation can extend the battery life up to a year or more depending on the application.

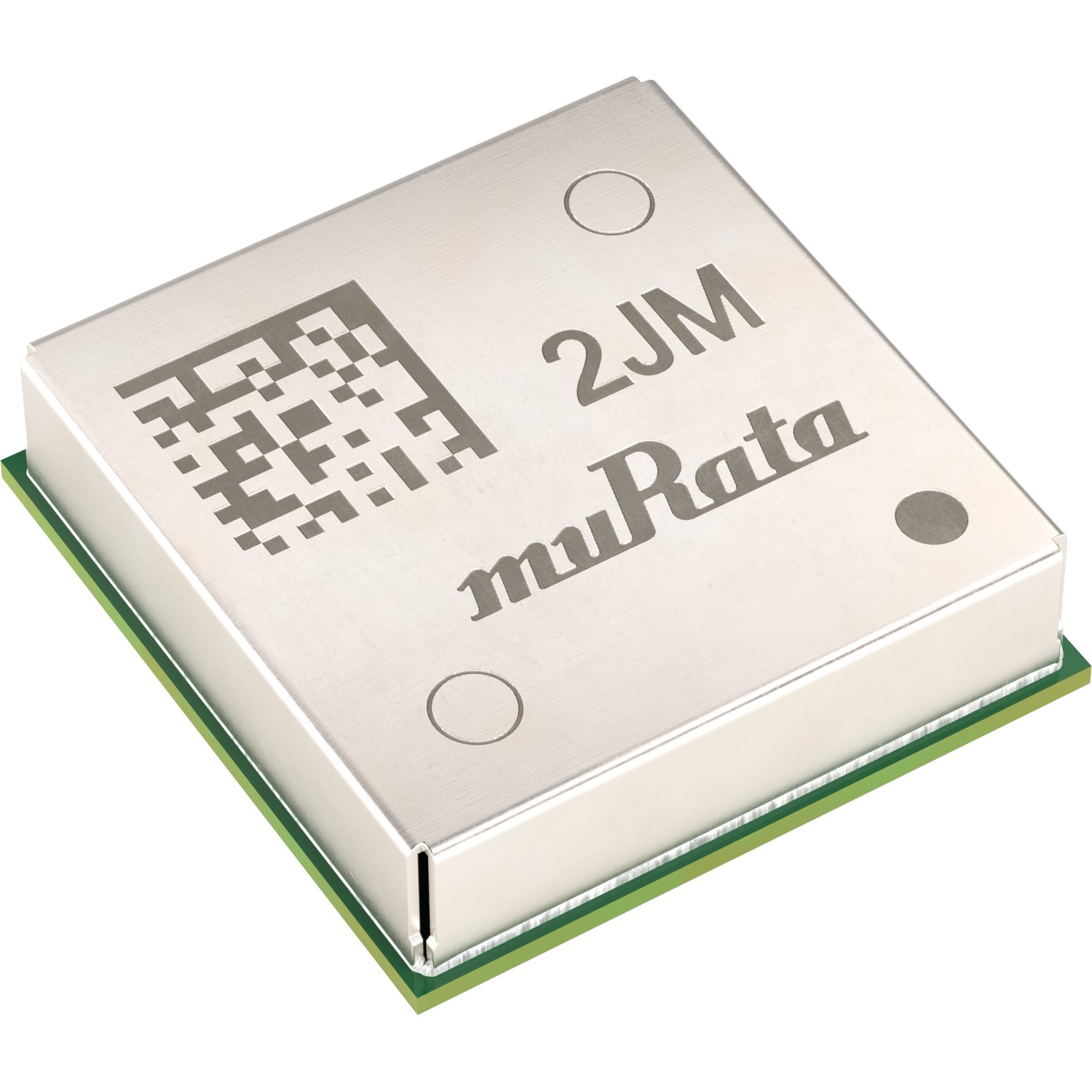

Type 2JM module is packaged in an impressively small form factor that facilitates integration into size- and cost-effective applications such as IoT applications, handheld wireless system, gateway and more.
