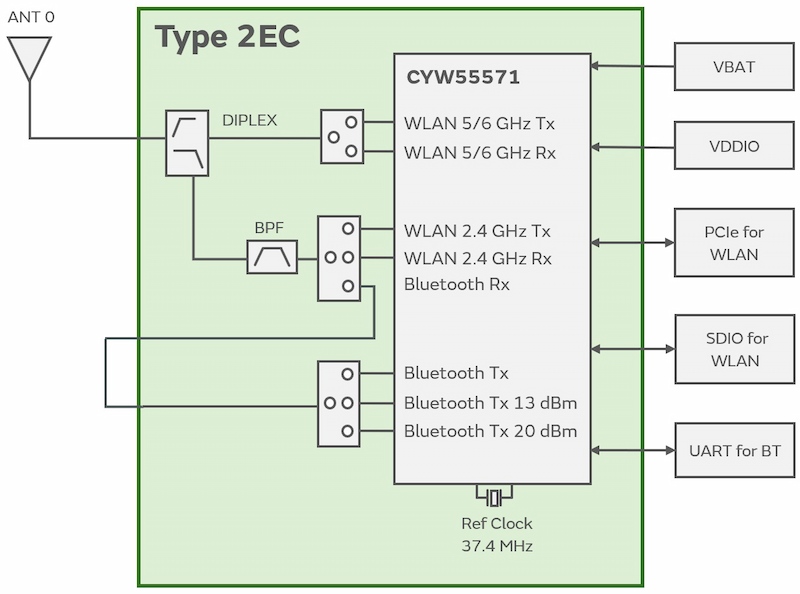

Type 2EC is a small and very high-performance module based on Infineon CYW55571 combo chipset which supports Wi-Fi® 802.11a/b/g/n/ac/ax Bluetooth® 5.3 BR/EDR/LE up to 600Mbps PHY data rate on Wi-Fi® and 3Mbps PHY data rate on Legacy Bluetooth (EDR), and 2Mbps PHY data rate on Bluetooth® LE. The WLAN section supports PCIe v3.0 Gen 2 and SDIO 3.0 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data.
The CYW55571 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth® collaboration is optimized for maximum performance.
In IEEE 802.11ax mode, the WLAN operation supports rates of MCS0-MCS11 (up to 1024 QAM) in 20MHz, 40MHz and 80MHz channels for data rate up to 600Mbps.
Type 2EC module is packaged in an impressively small form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more. It is also good for industrial applications with operating temperature up to +85C.
