RFID tag (by application)

For small product management

For electronic device management

For metal product management

For the management of clothing, shoes, and leather goods

For tire management

In the following page you can find detailed information of RFID micro tag, including a video clip of use cases, the benefits of micro tag, and downloadable materials.

The special feature on RFID micro tag

RFID tag (lineup)

Part Number	RFID standard	IC	EPC memory	User memory	Size L×W×T	Read range*	Stock Check
LXMSJZNCMK-257	ISO 18000-63 / EPC Global Gen2v2	Impinj M781	128 bit	512 bit	1.2 × 1.2 × 0.55mm	23.4mm (JP/US band) 24.1mm (EU band)	Stock Check
LXMSJZNCMH-225		Impinj M750	96 bit	32 bit	1.2 × 1.2 × 0.55mm	24.0mm (JP/US band) 25.4mm (EU band)	Stock Check
LXMS21NCMH-230		Impinj M750	96 bit	32 bit	2.0 × 1.25 × 0.55mm	25.9mm (JP/US band) 29.7mm (EU band)	Stock Check
LXMS21ACMK-258		Impinj M781	128 bit	512 bit	2.0 × 1.2 × 0.5mm	14m (on PCB)	Stock Check
LXTBKZMCMG-010		Impinj Monza R6P	128 bit	32 bit	6.0 × 2.0 × 2.3mm	1.5m (on metal)	Stock Check

Frequency: UHF band (865 to 928 MHz)

*Reference

Examples of commercially available mobile readers

For reading Murata's small tags measuring 1.2 × 1.2 × 0.55 mm and 2.0 × 1.25 × 0.55 mm, the combination of a dedicated small loop antenna and a reader-writer is suitable.
Examples:

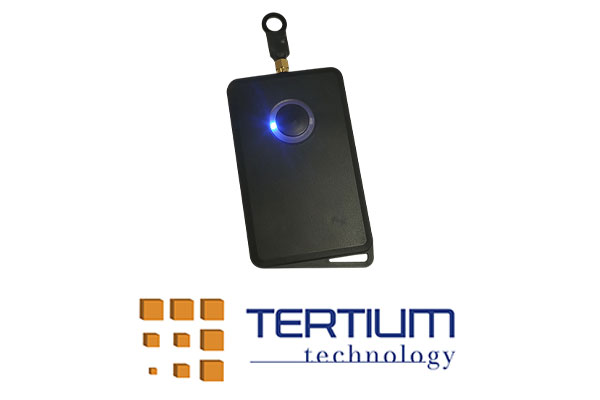

Combination of Tertium Technology's UHF Scanner RE40 SMA and UHF Viewfinder Antenna MS14 SMA

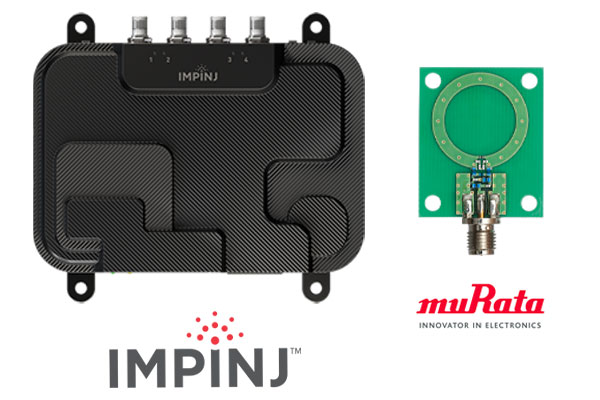

Combination of Impinj's Impinj R700 RAIN RFID Reader and Murata's LXRFZZUCCA-036/037-EVAL

For other tags, there is no particular antenna specification.
