    Wi-Fi® + Bluetooth® ModulesType 1PJ

    Order Number LBEE5ZZ1PJ

    • inproduction
    • recommended
    Read more

    Contents

    Overview

    Shielded Ultra Small Dual Band Wi-Fi® 11a/b/g/n + Bluetooth® 5.0 Module
    • 2.4GHz & 5 GHz Wi-Fi® + Bluetooth® Module
    • Chipset: Qualcomm (QCA9377-3)
    • Processor: No
    • FCC/IC "Reference" Certified
    High Performance Capabilities for Internet of Things
    • For Industrial IoT, Smart Home, Sensor Network, Gateway
    • 802.11 a/b/g/n/ac 1×1 433Mbps
    • NXP i.MX Linux

    Data Sheet & Contact menu

    Data Sheet PDF
    Contact Us
    Back to the contents

    Description

    Type 1PJ module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth® functionality for consumer grade applications. Based on Qualcomm QCA9377, the module provides IEEE 802.11a/b/g/n/ac (1×1) and Bluetooth® 5.0 BR/EDR/LE.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Products Data Sheet

    Last Update: Mar 6, 2019

    Data Sheet PDF
    Back to the contents

    Software

    Software Please submit the information through the Contact Us button to initiate a contact into Murata sales or wireless team for more information about software availability.
    Driver Firmware Linux driver/firmware for NXP i.MX platform
    Back to the contents

    Block Diagram

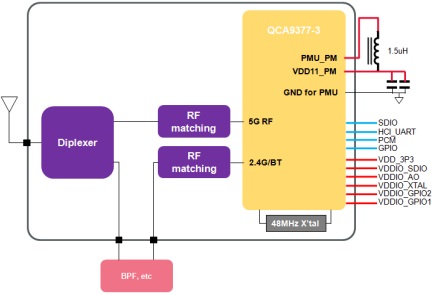

    Block Diagram : Type 1PJ
    Back to the contents

    Purchase

    Production Part Number LBEE5ZZ1PJ-377
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
    Shipping Size 2,000
