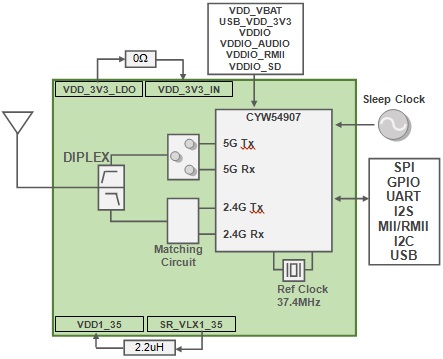

Type 1PS is a small and high performance module based on Infineon CYW54907 chipset which support Wi-Fi® 802.11a/b/g/n/ac up to 433Mbps PHY data rate and Ethernet up to 100Mbps PHY data rate, plus integrated powerful 320MHz ARM Cortex-R4 MCU for host-side applications.
Type 1PS enables high throughput consumer applications with its ARM Cortex-R4 MCU with no additional components.
Type 1PS network controller module provide device manufacturers with an easy-to-design solution for data acquisition, device management, Wi-Fi® Ethernet gateway and industrial control applications. USB 2.0 and SDIO 3.0 host and device mode are supported to have high speed external communication. RF matching, Antenna design and Regulatory certification are already taken care of and tested.
Each module offers a complete network controller solution. The Wi-Fi®, TCP/IP, security supplicant and other network application features are hosted directly on the module.
Yet, the feature-rich Type 1PS module is packaged in an impressively small form factor that facilitates integration into size- and power-sensitive applications.
